Главная страница /Продукция/Появляется маркиз/Wedding PVC Coating Aluminum Marquee 10m X 10m Pagoda Tent For Outdoor Event

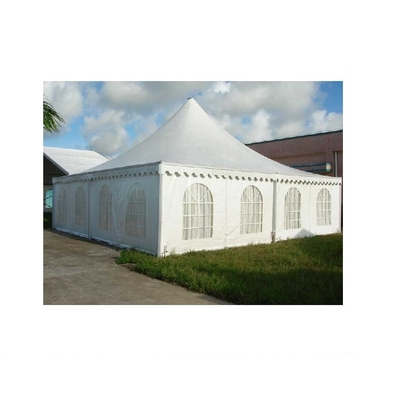

Wedding PVC Coating Aluminum Marquee 10m X 10m Pagoda Tent For Outdoor Event

9.0 Square Meters
MOQ
Wedding PVC Coating Aluminum Marquee 10m X 10m Pagoda Tent For Outdoor Event
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: 10m x 10mPT
Frame material: Aluminum
Cover material: PVC
Roof cover: 850G/㎡
Side Wall: 650G/㎡
Color: White,Red,Blue,Yellow,Green or can be customized
Usage: Wedding ,celebration ,festival ,fashion show exhibition ,etc.
Function: Can be assembled to bigger or smaller
Temperature capacity: -40 --- +70
Certificates: TUV.SGS.CE ISO9001
Warranty: 5 Years
Основная информация
Сертификация: TUV.SGS.CE ISO9001
Model Number: 10m x 10mPT
Оплата и доставка Условия
Packaging Details: * Air bubble film packaging(aluminum frame) * PVC bag(PVC cover) * Flight Case * Carrier transport(Glass wall) * Cable ties(ABS hard wall) We will use the best packaging to ensure that goods, it also can be tracked
Supply Ability: 500000 Square Meter/Square Meters per Month
Характер продукции

Product Description
Product Description

Aluminum pvc cover marquee 10m x 10m pagoda tent for outdoor event

1) High security .

2) Heavy-duty and stable structure .

3) Elegant and magnificent appearance .

4) TUV rheinland ISO9001:2008 certificated .

5) No interior poles structure design ,to give 100% use of interior space .

6) Easy to assemble and demount .Convenient to transport and storage .

7) Wide range of applications; Widely used for outdoor party ,wedding ,celebration ,festival ,fashion show exhibition ,fair ,trade show ,business promotion ,product show ,car showrooms ,conference ,ceremony ,garden centres ,swimming pool cover ,cafe room ,temporary warehouse or workshop ,etc .


Successful Projects
Successful Projects



Product Parameters
Product Parameters
A-Frame Tent Type





Width
Length
Bay distance
Side height
Ridge height
Max. wind load
6m
Unlimited
3m
2.60m
3.60m
80km/h
8m
Unlimited
3m
2.60m
3.90m
80km/h
10m
Unlimited
3m
2.60m
4.20m
80km/h
12m
Unlimited
5m
4.00m
6.00m
100km/h
15m
Unlimited
5m
4.00m
6.40m
100km/h
18m
Unlimited
5m
4.00m
6.90m
100km/h
20m
Unlimited
5m
4.00m
7.20m
100km/h
25m
Unlimited
5m
4.00m
8.00m
100km/h
30m
Unlimited
5m
5.00m
9.90m
100km/h
40m
Unlimited
5m
5.00m
11.50m
100km/h
50m
Unlimited
5m
5.00m
13.10m
100km/h
Item
Specification
Clear-span width
3m - 50m
Eave height
2.6m /3m/4m/5m/6m or customized
Ridge height
4.3 - 8m or customized
Roof pitch
20°
Longest component
3.7-10.6m
Minimum tent length
Can be customized
Roof fixing
Not limited
Main profile
84x48x3mm/ 122x68x3mm/ 166x88x3mm/ 203x112x4mm/ 204x112x4.5mm/ 256x120x5mm/ 300x125x5mm/ 350x126x6mm/ customized
Max.allowed wind speed
100km/hour ,0.5kn/m³ or can be customized
Eave/Ridge connection
Hot-dip Galvanized steel insert
Materials
(1) Frame structure: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.
(2) Fabric cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV
resistant, tear resistant, self-cleaning ability, etc.
(3) Connector: Strong hot-DIP galvanized steel
Features
(1) Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
(2) Wind load: Max. 80km/h (can be reinforced)
(3) Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
(4) Easy to be assembled and dismantled, movable.
(5) No pole inside, 100% available interior space.
Optional accessories
(1) Covers: Colourful cover, transparent cover, inflatable roof cover
(2) Windows: Dome or square clear PVC windows, mesh window, glass window for glass wall
(3) Wooden flooring system: VIP cassette flooring, simple cassette flooring
(4) Doors: Double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
(5) Wall: Soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
(6) Fixing methods: Ground anchors, weight plate, expandable bolts
Rain gutters (inner roof beam rain gutter or rain gutter between two similar tents)
(7) Other optional items: Table, chair, lighting, AC, carpet, installation tools etc.

Accessories Option & Installation Guide
Accessories Option & Installation Guide
Accessories Optional
Installation Methods

Related Products
Related Products

transportation and payment
company profile
Our company ZHEJIANG JIAXING JIAYI Import and Export Trade Co., Ltd. Our factory established in 1997.It's located in City, Zhejiang ,China. The main products Now is focus on tent business including trade show tent,pop-up tent,gazebo,canvas,relief and so on. We are approved of ISO9001 Quality Management System. Also, we pass CE certification.We can provide professional services including ordering, receiving, warehousing, export customs declaration, transportation and customs clearance for you.Your satisfaction is our greatest pursuit.





faq

*Can you print our logo on the tent?

Yes ,customized logo can be printed on the tent fabric accord to your requirements.

*Is that factory price ?

Yes we assure you all price are based on factory.

*Does your tent be able to installed repeatedly?what is he life span?

Our tent can be assembled and dismantled easily and repeatedly with small transportation size ,Life span of aluminum fame can be reach 15-20 years,and 4--6 years for PVC fabrics. It all depends on the conditions of usage.

*What documents are available?

A full range documents,including structural drawings,packing list installation manual and relative certificates can be provided further more ,customs declaration is provided.This is an one-top service for you.
